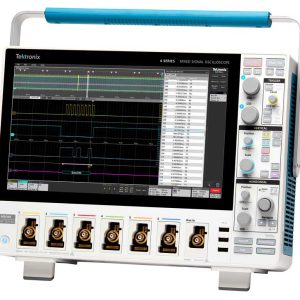

Tektronix 4 Series MSO Mixed Signal Oscilloscope

Tektronix 4 Series MSO Mixed Signal Oscilloscope

Supplied across UK & Ireland through APC Technology Group.

Biggest display in its class and award-winning user interface

With the same made-for-touch user interface technology as the award-winning 5 Series and the largest and highest resolution display in its class, the 4 Series MSO sets a new expectation of how a scope should work.

  • 13.3-inch HD display
  • 6.1-inch (15.5 cm) deep bench-friendly footprint

    • Outstanding details and up to 6 super-flexible channels

  • Any channel can show a waveform, spectrum, or both
  • Any input can be used to view eight digital channels by connecting a logic probe
  • Outstanding detail and accurate measurements on all channels
  • 12-bit vertical resolution (16-bit in high res mode)
  • 6.25 GS/s on all analog and digital channels
  • Up to 62.5 Mpoints record length

    • SKU: MSO44 Category:

    Related products

    Key Features

    Input Channels

  • 4 or 6 FlexChannel inputs
  • Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP058 probe

    • Bandwidth

  • 200 MHz, 350 MHz, 500 MHz, 1 GHz or 1.5 GHz

    • Sample Rate

  • 6.25 GS/s on all analog/digital channels

    • Record Length

  • 31.25 or 62.5 Mpoints

    • Vertical Resolution

  • 12 bits
  • Up to 16 bits in High Res mode

    • Signal Generation

  • Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac

    • Digital Voltmeter

  • 4-digit AC RMS, DC
  • DC+AC RMS voltage

    • Trigger Frequency Counter

  • 8-digit

    • Advanced Analysis

  • Spectrum View Mixed Domain Analysis
  • Automated Power Measurements
  • 3-Phase Power Measurements

    • Protocol Support

  • 10BASE-T, 100BASE-TX
  • CAN, CAN FD, LIN, FlexRay
  • I2C, SPI
  • MIL-STD-1553, ARINC 429
  • RS-232, RS-422, RS-485, UART
  • SPMI
  • SVID
  • USB 2.0 LS, FS, HS

    • Display

  • 13.3-inch (338 mm)
  • HD color (1920 x 1080) capacitive touchscreen

    • Dimensions (H x W x D)

  • 287 mm x 405 mm x 155 mm
  • (11.3 in x 15.9 in x 6.1 in)

    • Weight

  • 16 lbs (7.3 kg)
