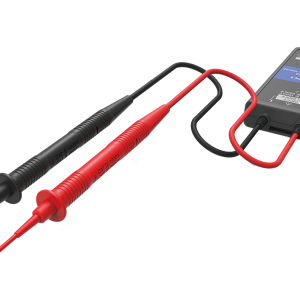

Hioki P2000 DC High Voltage probe
Hioki P2000 DC High Voltage probe
Supplied across UK & Ireland through APC Technology Group.
The voltage of the solar installations (also known as photovoltaic or PV installations) increases to reduce cost and improve the efficiency of solar equipment. As a result, it is important to select measuring instruments that support higher voltage measurement to protect the safety of inspection workers.
The Hioki P2000 enables high voltage measurement up to CAT III 2000 V by simply connecting to a compatible Hioki clamp meter or digital multimeter (DMM).
Basic specifications
| Maximum input voltage | DC 2000 V between INPUT H and INPUT L |
|---|---|
| Maximum rated line-to-ground voltage | 1000 V (Measurement Category IV), Anticipated transient overvoltage 12000 V 2000 V (Measurement Category III), Anticipated transient overvoltage 15000 V |
| Input resistance | 20 MΩ ±5.0% (between INPUT H and INPUT L, when OUTPUT terminal is open) |
| Overload protection | 2200 V DC/2200 V AC (applied for 1 minute) (between INPUT H and INPUT L) 600 V DC/600 V AC (applied for 1 minute) (between OUTPUT H and OUTPUT L) |
| OUTPUT terminal | 4 mm banana terminal |
| Operating temperature and humidity range | Temperature: -25°C to 65°C (-13°F to 149°F)
Humidity: −25°C to 40°C (−13°F to 104°F): 80% RH or less (non-condensing) |
| Storage temperature and humidity range | -30°C to 70°C (-22°F to 158°F) 90% RH or less (non-condensing) |
| Standards | EN 61010 |
| Included accessories | Connection Cable Set L4943 ×1, Strap with buckle ×2, Strap ×1, Carrying Case C0205 ×1, Instruction Manual ×1, Operating Precautions ×1 |
