Hioki IM9201 SMD Test Fixture

Supplied across UK & Ireland through APC Technology Group.

Hioki LCR Meters and Impedance Analyzers range from 1mHz to 3GHz devices to suit a wide range of applications in the testing of electronic components.

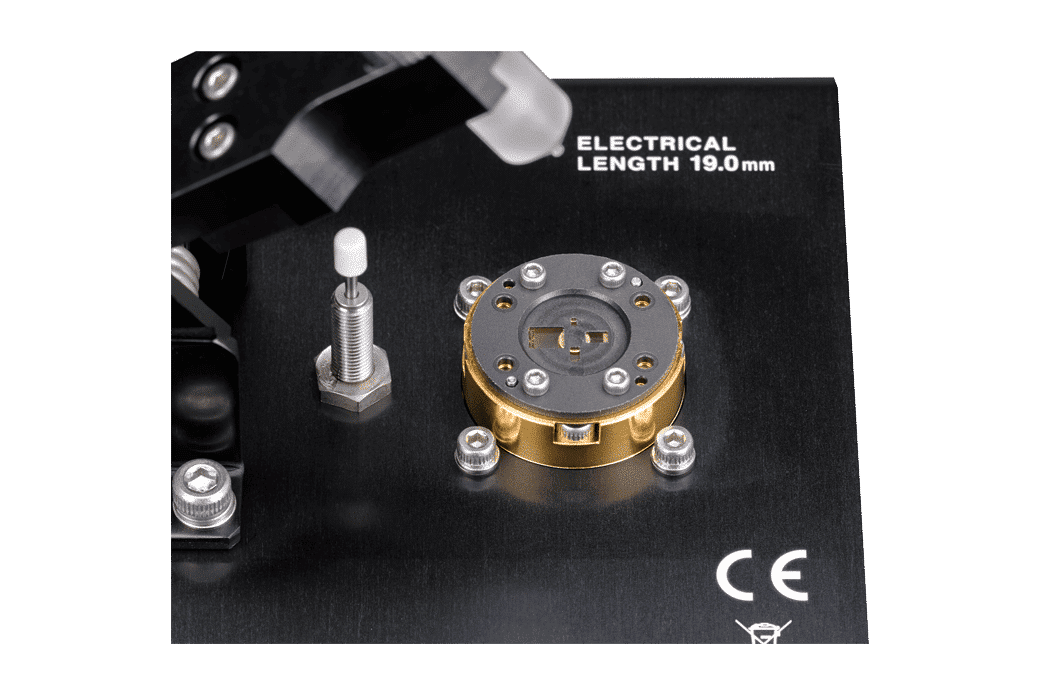

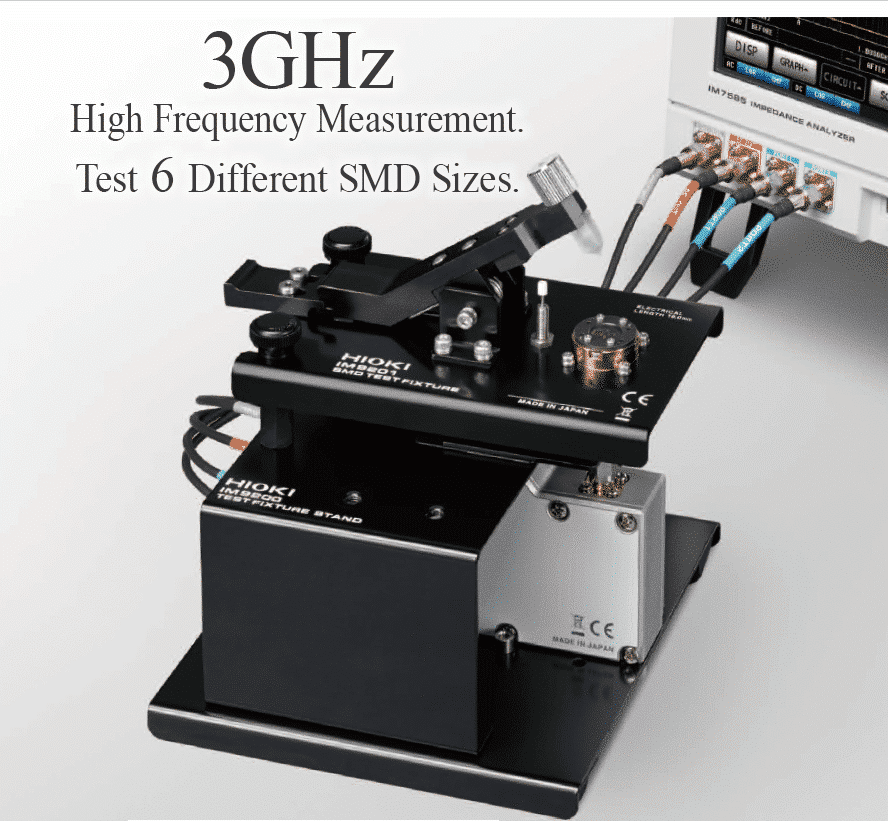

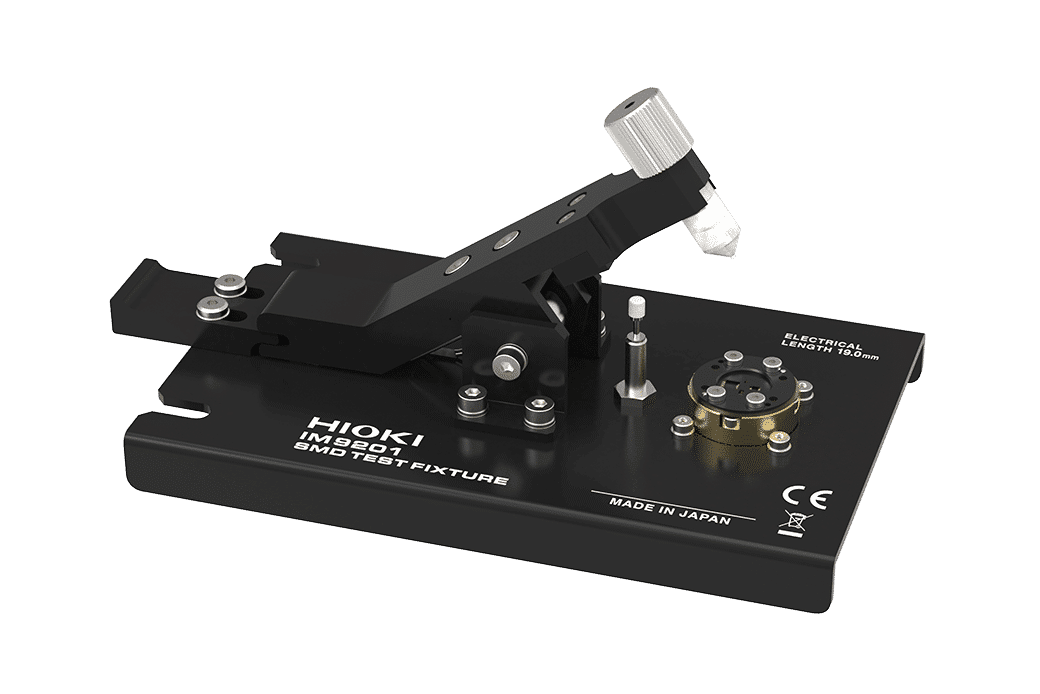

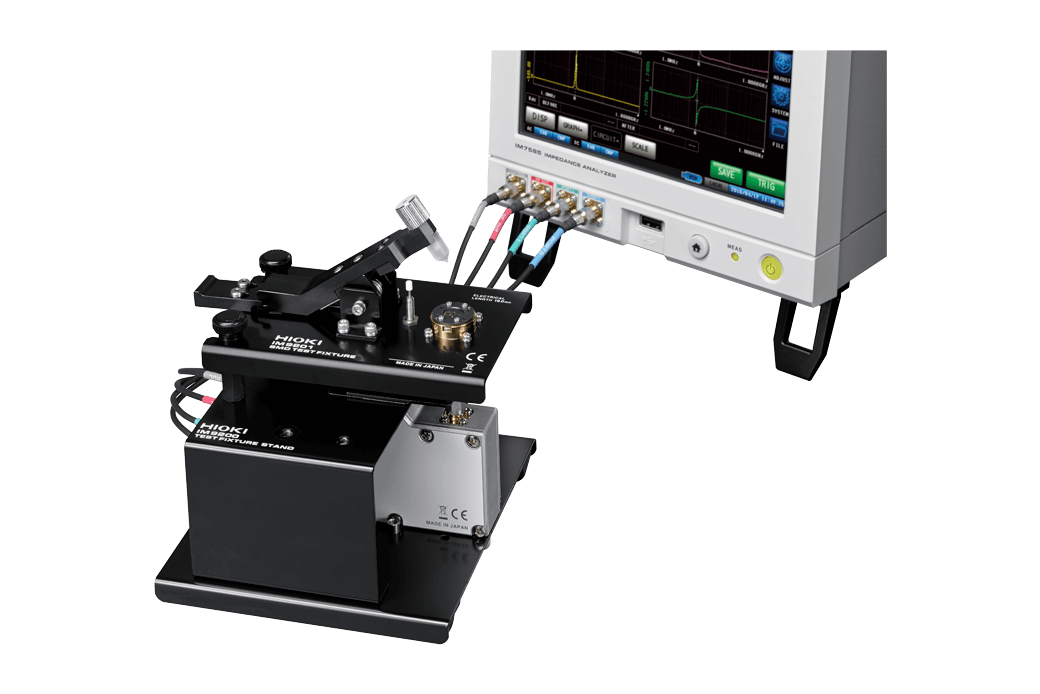

The IM9201 is a high frequency SMD test fixture for the IM758 series impedance analyzers that delivers ultimate flexibility by supporting 6 different SMD package sizes.

Specifications Overview

Frequency range	DC to 3 GHz
Compatible package sizes	0201, 0402, 0603, 0805, 1206, 1210 (EIA)
Electrode structure	Bottom electrodes
Maximum voltage	±42 Vpeak (AC+DC)
Supported units	IM7580, IM7580A, IM7581, IM7583, IM7585, IM7587* *3GHz measurement frequency impedance analyzer available soon
Additional uncertainty	Impedance: ±Ze [%] Phase: ±0.58 × Ze [° ] Ze = Ae + (Zse / Zx + Yoe × Zx) × 100 Zx: Measured impedance value [Ω] Ae: 4 × f2 [%] Zse: (100 + 500 × f) / 1000 [Ω] Yoe: (10 + 100 × f) / 1000000 [S] f [GHz]
