2006 Single Axis Positioner
2006 Single Axis Positioner
Supplied across UK & Ireland through APC Technology Group.

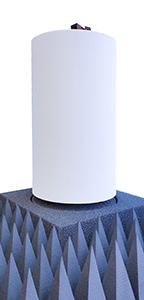

ETS-Lindgren’s Model 2006 Light Duty Azimuth Positioner is designed to provide azimuth rotation of a lightweight test object. It is intended primarily as a basic solution for azimuth (polar) pattern measurements of passive and active devices.
The model 2006 is fully compatible with our EMQuest™ & EMQuest Lite Antenna Pattern Measurement Software for passive antenna pattern measurement. For pattern measurement of active devices, a software upgrade to our fully functional standard EMQuest EMQ- 100 Antenna Pattern Measurement Software is recommended.
Electrical Specifications
Phase: Single
Voltage: 208/230 VAC, 50/60 Hz
Physical Specifications
Base Height: 21.0 cm (8.27 in) without Absorber; 26.4 cm (10.39 in) with Absorber
EUT Support Column Height (P/N 126228): 87.6 cm (34.5 in)
Nominal Load Capacity: 25.0 kg (55.0 lb)
Nominal Overall Height: 121.9 cm (48.0 in); Other Heights Available
